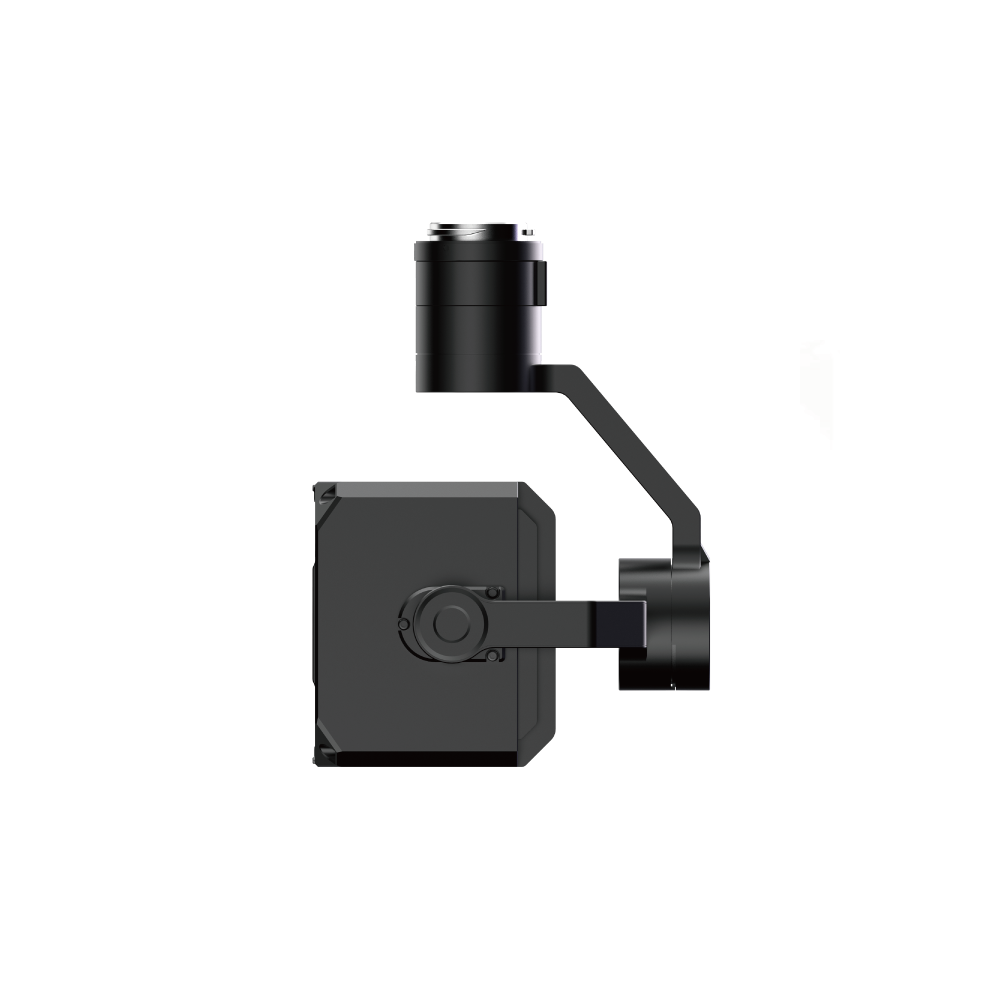

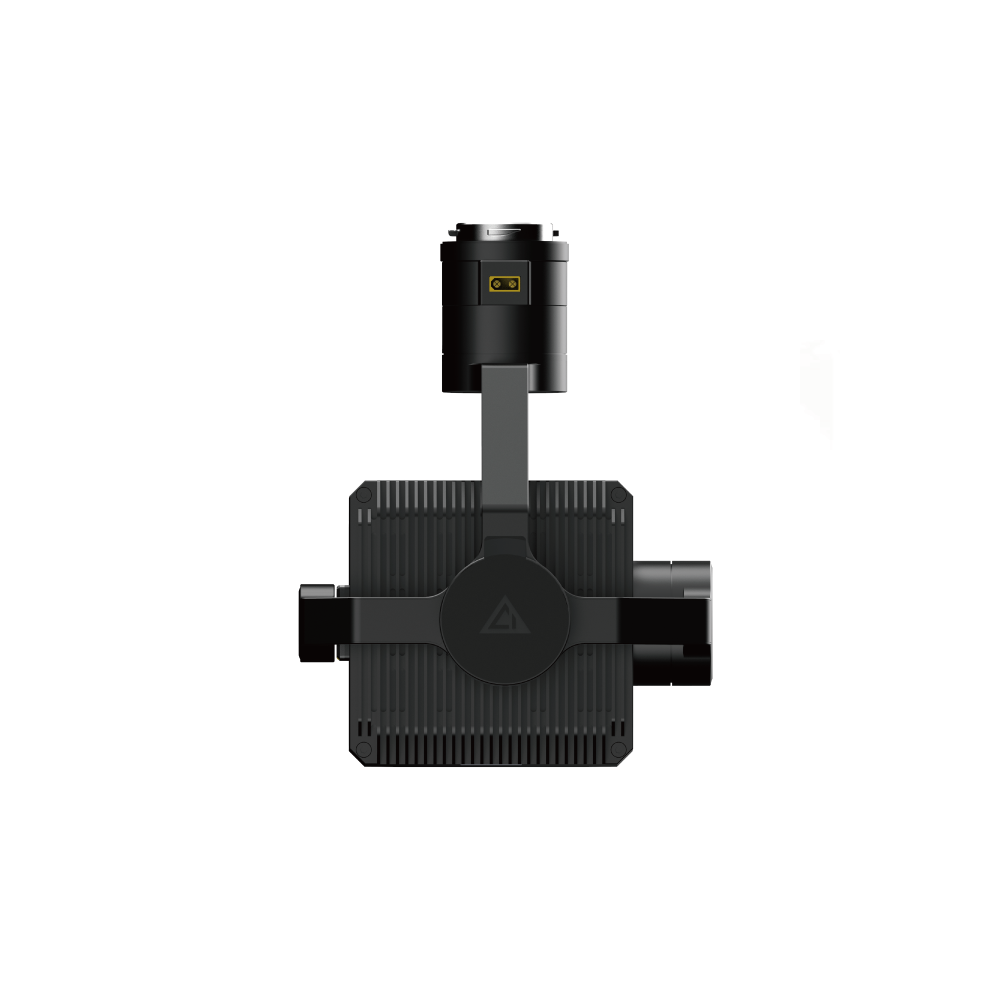

czi GL60 Plus Gimbal Search light



GL60 Plus
Gimbal Searchlight

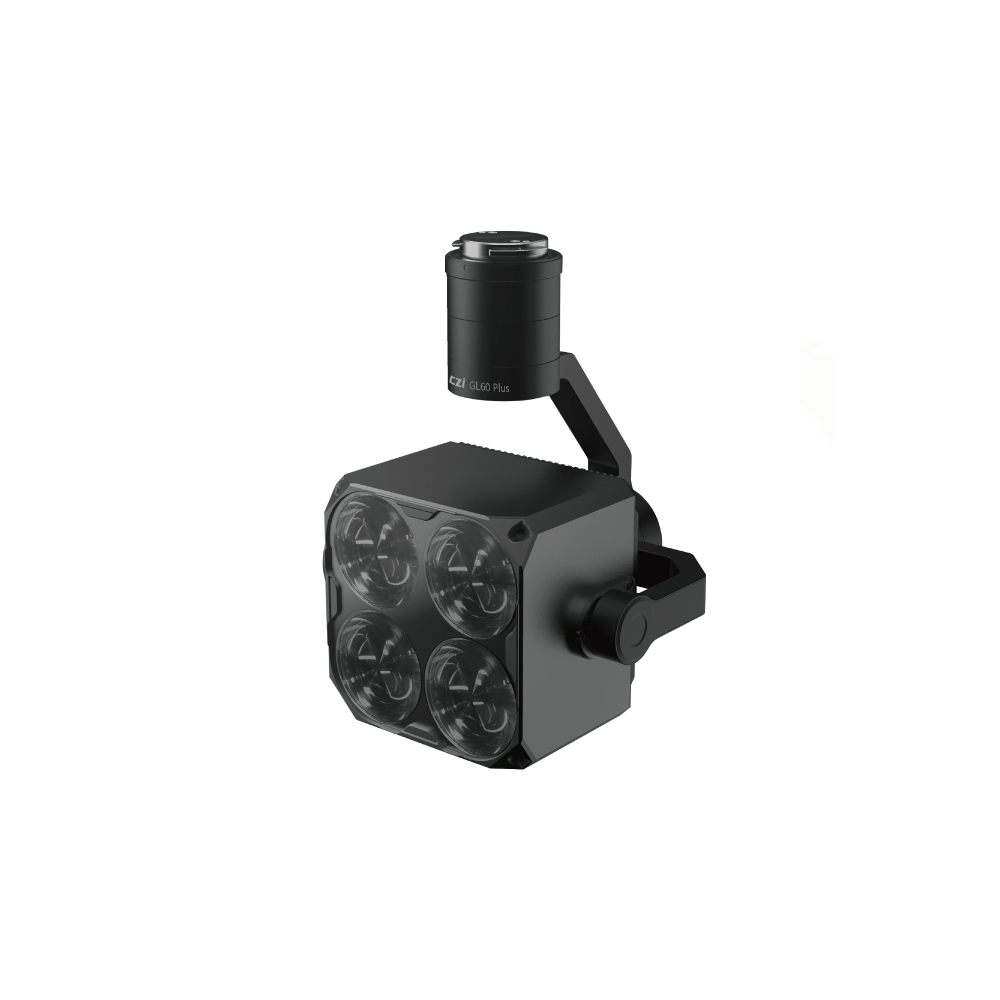

The gl60 plus cloud table lamp adopts four groups of optical imaging components, each group is composed of four lenses, emits a sharp light column with an angle of only 15 degrees, has the same color, uniform brightness, and stably outputs the best illuminance of 24lux, with an effective irradiation distance of 150m and an effective lighting area of 1225 square meters, which improves the aerial irradiation effect of UAV at night to a new height. The overall design is ultra lightweight, weighs only 750g, and the rated power is up to 120W. Through the djiskyportv2.0 interface, it is compatible with Dajiang Jingwei m200v2, m300rtk and other series of UAVs, which can meet the requirements of night patrol, warning drive, azimuth indication, power line patrol, search and rescue and other night operations.



  • LED linear dimming

    High power LED light source,Maximum power 120W,100 meters of ground illumination 24lux,Linear shading,The license plate was not exposed.

  • Non reflective bowl design

    No secondary light spot,Reduce the loss of effective brightness,With strong light explosion and flash mode,It can silently drive away and indicate the direction.

  • Imaging optical technology

    Imaging optics,4 sets of optical lens sets,1 set of 4 lenses,15 degree luminous angle,

  • Ultra lightweight design

    Fully sealed fuselage,IP55 waterproof and dustproof,New die casting heat dissipation process,0.7 kg ultra light weight,Flexible use and longer endurance.



Adapted models

  • M200V2
  • M300RTK



Parameter information

Model

GL60 Plus
Electrical interface

DJI SkyPort V2.0
Weight

750g
Size

126*131*167mm
FOV

15°
Voltage

PSDK 17V+OSDK 24V
PSDK 17V
Total power

128W
68W
LED power

120W
60W
Luminous flux

13400lm±3%（Power:120W）
8000lm±3%（Power:60W）
Light effect

111.67lm/W（Power:120W）
133.33lm/W（Power:60W）
Spot diameter

13.2m（distance：50m）
26.4m（distance：100m）
39.5m（distance：150m）
Probe area

136m²（distance：50m）
544m²（distance：100m）
1225m²（distance：150m）
Central illuminance

85Lux（Power:120W；distance：50m）
24Lux（Power:120W；distance：100m）
11Lux（Power:120W；distance：150m）
45Lux（Power:60W；distance：50m）
12Lux（Power:60W；distance：100m）
6Lux（Power:60W；distance：150m）
Function mode

Normally on: 120W; 60W
Explosion and flash: 120W ; 60W
Pan tilt angle adjustment < br / >Auto follow < br / >Brightness adjustment
Pan tilt rotation range

Pitch: – 110 ° ~ + 30 ° < br / >Horizontal: ± 200 °
PTZ design scope

Pitch: – 110.3 ° ~ + 40 ° < br / >Horizontal: omnidirectional 360 ° < br / >Rolling: – 90 °～ 60 °
Working temperature

-20°C~+50°C
